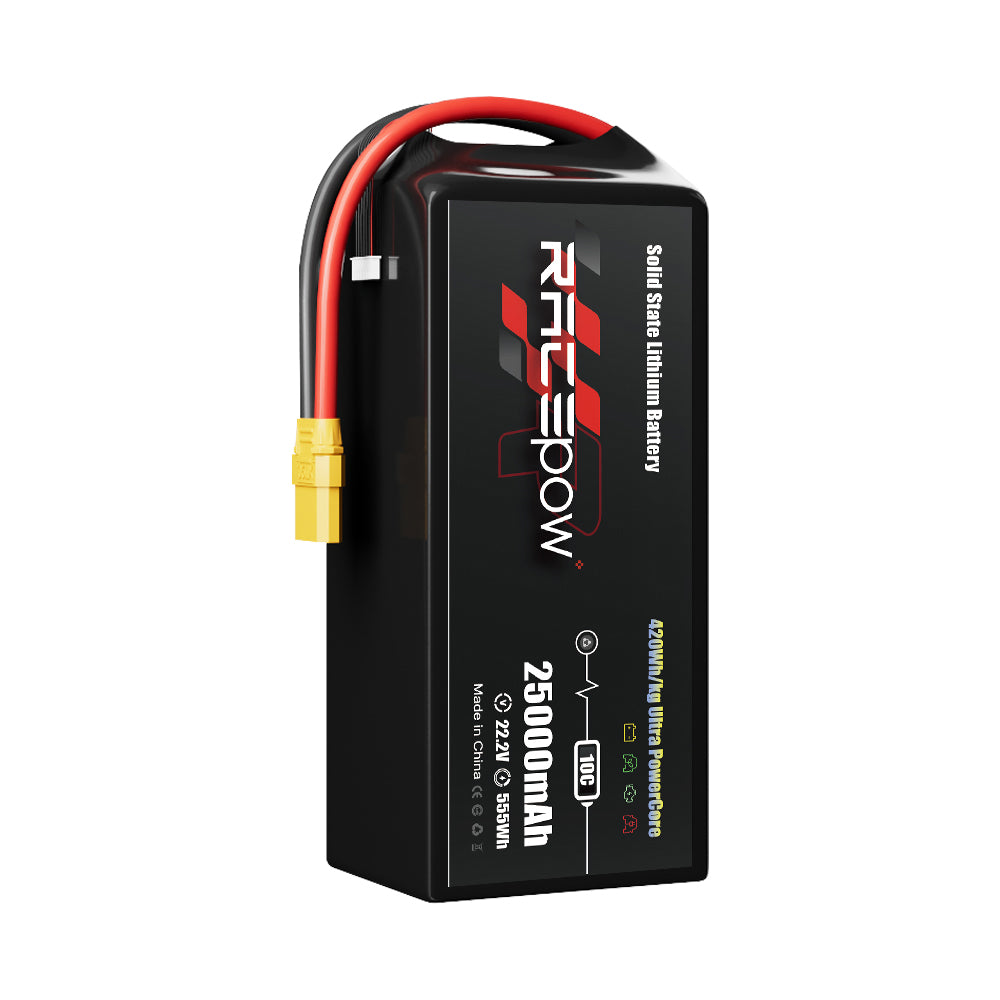

420Wh/kg 25Ah 22.2V 555Wh Solid State Battery for Heavy Cargo VTOL/Fixed-wing Drones

Features:

• Ultra High Capacity: 25Ah capacity delivers extended runtime and exceptional energy density.
• Massive Energy Output: 555Wh provides stable and continuous power for demanding applications.
• Enhanced Safety: Solid-state design with built-in protection for overcharge, over-discharge, and short-circuit.
• Temperature Resilience: Operates reliably from -20°C to 55°C for versatile use in diverse environments.
• Fast Charging Efficiency: Supports up to 12.5A charging current for reduced downtime and increased productivity.


Specifications:

• Nominal Voltage: 22.2V
• Energy Capacity: 555Wh
• Maximum Charge Voltage: 25.5V
• Discharge Cut-off Voltage: 15V
• Internal Resistance: ≤8mΩ (AC 1kHz, 25°C±2℃)
• Maximum Charge Current: 12.5A (0.5C)
• Continuous Discharge Current: 250A (10C)

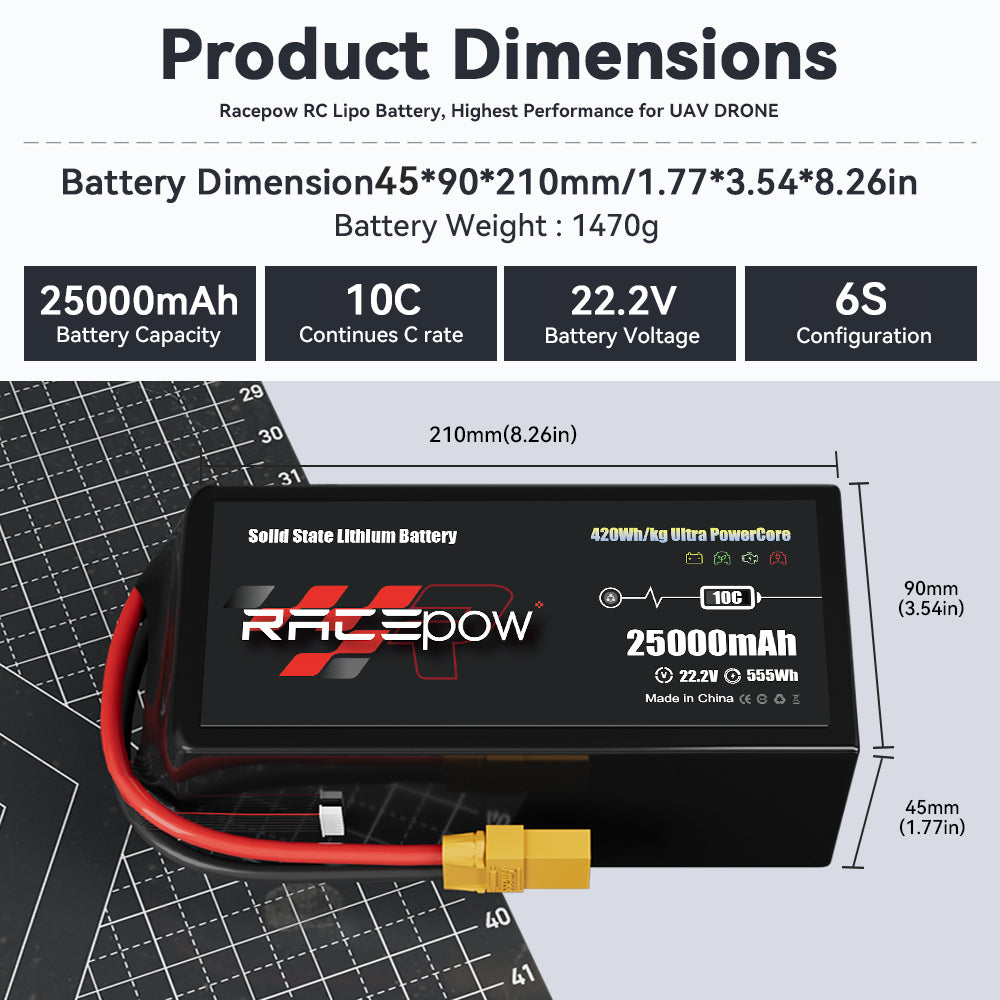

• Dimensions(H*W*L): 45mm x 90mm x 210mm
• Weight: 1470g

Applications:

• UAVs & Drones: Delivers high energy for long-endurance flights and professional aerial operations.
• Electric Vehicles: Ideal for e-bikes, scooters, and small EVs requiring high performance and safety.
• Energy Storage Systems: Suitable for off-grid power, backup systems, and portable energy units.
• Industrial Equipment: Powers tools, robotics, and heavy-duty applications with consistent performance.
